GA -E400 Video Colonoscope

Characters：

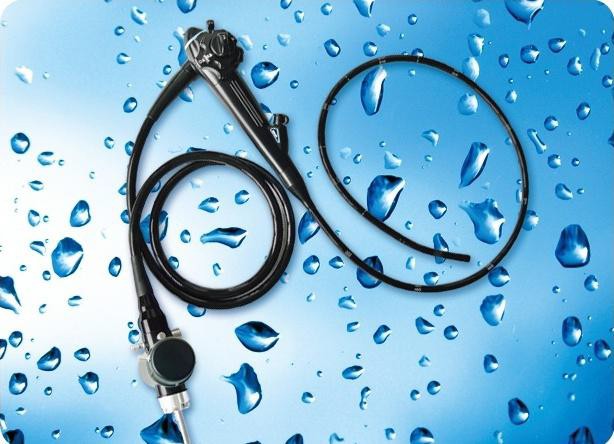

• Part 1: video colonoscope



• Bending operation : Traction chain structure, whole sealed waterproof Image display : Two image display optional
• Split machine : Main part and light source are splited Quality certification : ISO9001、13485、CE
• Warranty : One year(free), permanent repairs (not free) Package size :64*18*48cm (G.W.:5.18kgs)




• Part 2: Video processor



• Voltage: 220-240V
• Frequency: 50-60HZ
• System: PAL
• Image regulation : Automatic regulate light, keep the image at its best
• Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color / contrast adjustable 0-100 level , Svideo / AV output.
• Reverse function :Black and white reversed.
• White balance : Auto white balance , manual white balance.
• Manual white balance :Manual white balance can be calibrated color, color adjustable (Red, Blue).
• Electronic shutter : 10 level electronic shutter adjustment.
• Metering : Average metering, peak metering, metering area delineated. Contour enhancement : 10-level contour enhancement.
• Lens optional : Manual lens, automatic lens, video lens three optional. Sharpness adjustment : 0-30 sharp changes of the image in fine processing. Digital WDR :Digital broadband function.
• Backlight compensation : Improve the average brightness of the whole screen Cama line :Cama line clarity 6 level adjustment.
• R/L Mirroring: The left and right mirror position can be changing. Package size :50.5*46*20cm (G.W.:7.34kgs)




• Part 3: Cold light source



• Voltage: 220V-240V
• Frequency: 50-60HZ
• lamp Power: 15V-150W environmentally friendly halogen tungsten lamp
• Illumination: 70000LX (using special measuring tools)
• Color Temperature: 3000-7000K
• Air Pump Pressure: 30-60Kpa pump) 7.Electric switch : AB light two sets light source
• Main Function:
• Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.
• Built with micro axial fan cooling temperature.
• Adopt dimming electronic control unit organization.
• Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life, convenience to the operation
• Package box:54*47*27.3cm (10.54kgs)




• Part 4: LCD Display


• Display size: 15"
• Power Supply：External Power Supply 12V
• Resolution：1024X768
• Display Ratio：4:3
• Color：16.7M
• Camoration Brightness：180±10 cd/㎡
• Max.Brightness ：400 cd/㎡
• Contrast Ratio：700 : 1
• Viewing Angle：120/140 Response Time：8ms Package size : 44*36.5*16.5cm (G.W.:6.0kgs)




• Part 5: Equipment vehicles






• Size : 500 * 700

• Package size:118.5*63.5*22cm (G.W.:44.5kgs)
